Tracking a Transfer

Prerequisites

Before tracking a transfer, you need to send it. See Sending a Transfer to get the Transfer ID.

Transfer ID

Technical Details

Transfer ID is the transaction hash of the event on the Proxy contract.

┌─────────────────────────────────────────────────────────────────┐
│                      Proxy Contract                             │
│                                                                 │
│  1. Receives tokens via transferNotification()                  │
│  2. Calls _emitTvmEvent() or _deployEvmEvent()                  │
│  3. Emits TvmTvmNative or TvmTvmAlien event                     │
│  4. Transaction hash of this event = TRANSFER ID               │
└─────────────────────────────────────────────────────────────────┘

Location in Blockchain

Transaction (on Proxy contract) ← Transaction Hash = TRANSFER ID
├── In Message (incoming tokens)
├── Out Messages
│   ├── Internal Messages (internal transfers)
│   └── External Out Message ← EVENT (TvmTvmNative/TvmTvmAlien)
└── Account (updated state)

Event Types

Event	TokenType	Description
TvmTvmNative	Native	Native token transfer (lock → mint)
TvmTvmAlien	Alien	Alien token transfer (burn → unlock)

Transfer Statuses

Two Status Levels

The system has two status levels:

Level	Where Stored	Purpose
TransferStatus	Bridge Aggregator API	Aggregated status for UI/integrations
Event Contract Status	On-chain (Event contract)	Detailed event verification state

Relationship: Bridge Aggregator API aggregates on-chain Event contract statuses into a simplified TransferStatus:

Event Contract Status                    →    TransferStatus (API)
─────────────────────────────────────────────────────────────────────
Initializing, Pending, Verified          →    Pending
Confirmed, LiquidityProvided             →    Completed
Rejected, Cancelled                      →    Failed

TransferStatus (API level)

Used in Bridge Aggregator API responses (/v2/transfers/status, /v2/transfers/search).

Status	Code	Description
Pending	1	Event created, awaiting confirmation in destination network
Completed	2	Transfer fully completed (tokens delivered)
Failed	3	Transfer rejected by relays

Event Contract Status (on-chain level)

Detailed Event contract statuses in the blockchain. Used to understand the verification stage of the event.

Status	Code	Description	→ TransferStatus
Initializing	0	Event contract deployed	Pending
Pending	1	Awaiting verification	Pending
Confirmed	2	Confirmed, proxy called, tokens delivered	Completed
Rejected	3	Rejected	Failed
Cancelled	4	Cancelled by user	Failed
LimitReached	5	Daily limit exceeded, requires liquidity	Pending
LiquidityRequested	6	Liquidity request created	Pending
LiquidityProvided	7	Liquidity provided, tokens delivered	Completed
Verified	8	Merkle proof verified, awaiting token deploy	Pending

Trustless transition: Pending → Verified → Confirmed

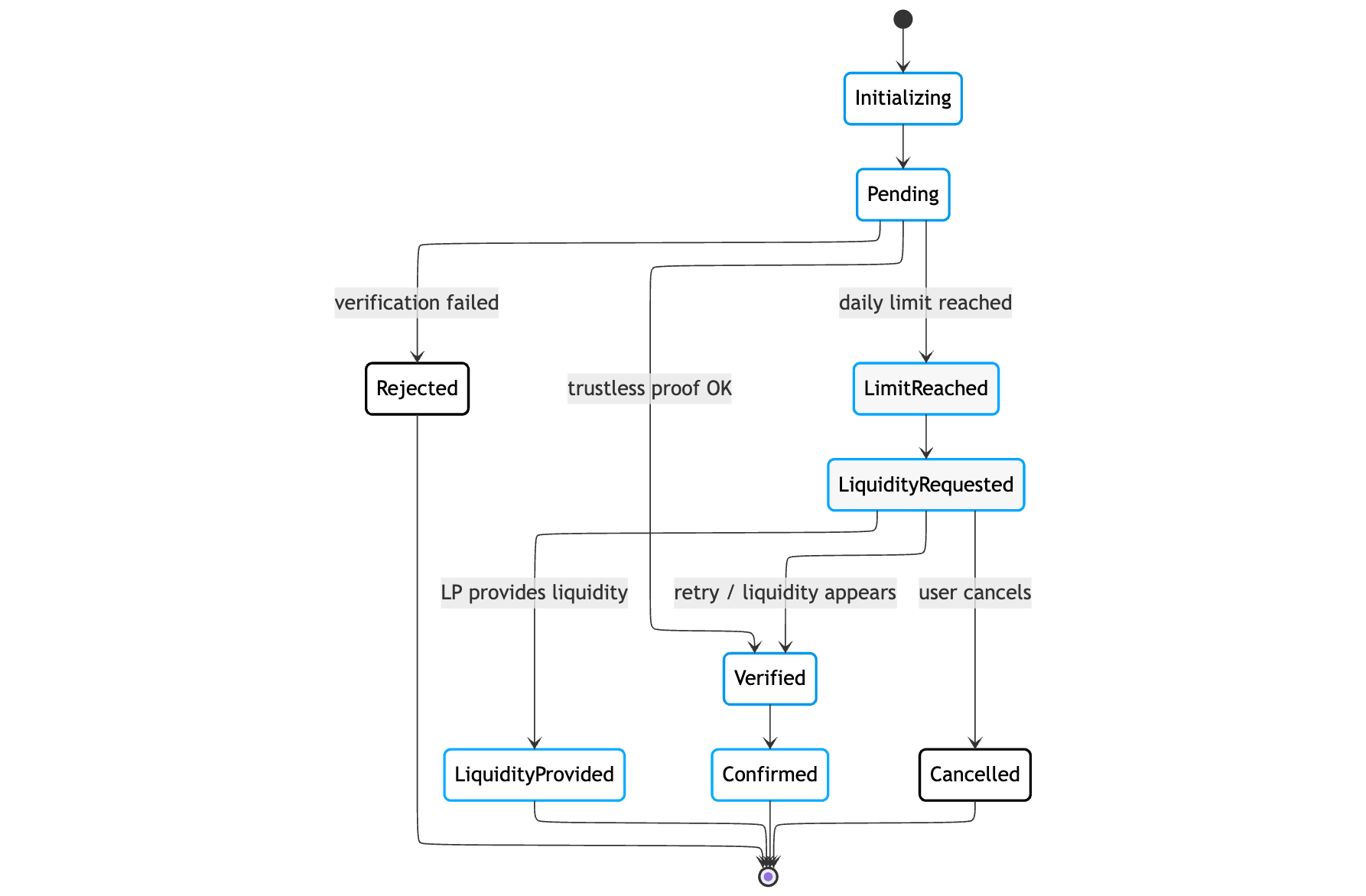

Status Transition Diagram

Getting Status by Transfer ID

API Endpoint

POST https://tetra-history-api.chainconnect.com/v2/transfers/status
Content-Type: application/json

Test Environment

For testing, use https://history-api-test.chainconnect.com/v2/transfers/status

Request Parameters

Important

According to the OpenAPI specification, the field is called outgoingTransactionHash (not outgoingMessageHash)

Parameter	Type	Required	Description
outgoingTransactionHash	string	✅	Transfer ID (hex, 64 characters)
dappChainId	number	✅	Chain ID of source network (TON = -239, Tycho = 2000)
timestampCreatedFrom	number	❌	Unix timestamp for filtering (optional)

Request Example (TvmTvm)

curl -X POST 'https://tetra-history-api.chainconnect.com/v2/transfers/status' \
  -H 'Content-Type: application/json' \
  -d '{
    "tvmTvm": {
      "outgoingTransactionHash": "abc123def456...",
      "dappChainId": -239,
      "timestampCreatedFrom": null
    }
  }'

Response Example

{
  "transfer": {
    "tvmTvm": {
      "transferStatus": "Pending",
      "timestampCreatedAt": 1767972717,
      "outgoing": {
        "tokenType": "Native",
        "chainId": -239,
        "userAddress": "0:3333...cccc",
        "tokenAddress": "0:1111...aaaa",
        "proxyAddress": "0:6666...ffff",
        "volumeExec": "0.1000",
        "volumeUsdtExec": "0",
        "feeVolumeExec": "0",
        "messageHash": "abc123def456...",
        "transactionHash": "def789abc012..."
      },
      "incoming": {
        "tokenType": null,
        "chainId": 2000,
        "userAddress": "0:2222...bbbb",
        "tokenAddress": null,
        "proxyAddress": null,
        "volumeExec": null,
        "volumeUsdtExec": null,
        "feeVolumeExec": null,
        "messageHash": null,
        "transactionHash": null
      }
    }
  },
  "notInstantTransfer": null,
  "proofPayload": {
    "txBlockProof": "te6ccgECCg...",
    "txProof": "te6ccgEBBw...",
    "messageHash": "abc123def456...",
    "outMessageIndex": 0,
    "event": {
      "tokenType": "Native",
      "chainId": 2000,
      "token": "0:1111...aaaa",
      "amount": "99000",
      "recipient": "0:2222...bbbb",
      "value": "150000000",
      "expectedGas": "0",
      "remainingGasTo": "0:3333...cccc",
      "sender": "0:3333...cccc",
      "payload": "te6ccgEBAQEAAgAAAA==",
      "nativeProxyWallet": "0:9999...2222",
      "name": "Tether USD",
      "symbol": "USD₮",
      "decimals": 6
    },
    "abiTx": {
      "tx": "te6ccgEBBwEA6AABiw/X8c8...",
      "executionAddress": "0:8888...1111",
      "attachedValue": "2000000000",
      "abiMethod": "deployEvent",
      "abi": "...",
      "params": "{\"_eventVoteData\":{...}}"
    }
  }
}

Response Field Descriptions

transfer.tvmTvm — transfer data

Field	Type	Description
transferStatus	string	Status: "Pending", "Completed", "Failed"
timestampCreatedAt	number	Unix timestamp of transfer creation

outgoing / incoming — transfer side data

Field	Type	Description
tokenType	string | null	"Native" or "Alien"
chainId	number	Network Chain ID
userAddress	string	User address (sender/recipient)
tokenAddress	string | null	Token address in this network
proxyAddress	string | null	Proxy contract address
volumeExec	string | null	Amount in human-readable format
volumeUsdtExec	string | null	Amount in USDT equivalent
feeVolumeExec	string | null	Fee charged
messageHash	string | null	Event message hash
transactionHash	string | null	Transaction hash (Transfer ID for outgoing)

proofPayload — data for non-credit transfers

Field	Type	Description
txBlockProof	string	Block proof (BOC base64)
txProof	string	Transaction Merkle proof (BOC base64)
messageHash	string	Event message hash
outMessageIndex	number	Index of outgoing message in transaction
event	object	Event data (see below)
abiTx	object | null	Ready transaction for deployEvent (see below)

proofPayload.abiTx — ready transaction for non-credit

Field	Type	Description
tx	string	Transaction payload (BOC base64)
executionAddress	string	EventConfiguration contract address
attachedValue	string	Required gas in nano-units
abiMethod	string	Contract method (deployEvent)
abi	string	Contract ABI
params	string	Call parameters (JSON string)

proofPayload.event — event data

Field	Type	Description
tokenType	string	"Native" or "Alien"
chainId	number	Destination network Chain ID
token	string	Token address
amount	string	Amount in nano-units
recipient	string	Recipient address
value	string	Attached value (gas)
expectedGas	string	Expected gas
remainingGasTo	string	Address for gas return
sender	string	Sender address
payload	string	Additional payload (BOC base64)
name	string	Token name
symbol	string	Token symbol
decimals	number	Number of decimals

notInstantTransfer — liquidity request data

Populated when the transfer requires liquidity (LimitReached → LiquidityRequested status).

Field	Type	Description
liquidityRequestAddress	string	Liquidity request contract address
status	string	Request status
amount	string	Requested amount

Response Interpretation

Field	Value	Action
transferStatus: "Pending"	Waiting	Continue polling
transferStatus: "Completed"	Completed	Success!
transferStatus: "Failed"	Error	Handle error
proofPayload != null	Proof ready	Can deploy event (non-credit)
incoming.transactionHash != null	Second part executed	Transfer almost completed

Transfer History

API Endpoint

POST https://tetra-history-api.chainconnect.com/v2/transfers/search
Content-Type: application/json

Request Parameters

Parameter	Type	Required	Description
userAddresses	string[]	❌	Filter by user addresses (max 7)
transferKinds	string[]	❌	Transfer type: ["TvmToTvm"]
statuses	string[]	❌	Filter by statuses: ["Pending", "Completed", "Failed"]
fromTvmChainId	number	❌	Source network Chain ID
toTvmChainId	number	❌	Destination network Chain ID
createdAtGe	number	❌	Unix timestamp >= (from date)
createdAtLe	number	❌	Unix timestamp <= (to date)
ordering	string	❌	Sorting: "CreatedAtAscending" or "CreatedAtDescending"
limit	number	✅	Record limit (max count in response)
offset	number	✅	Offset (for pagination)
isNeedTotalCount	boolean	✅	Whether to return total transfer count

Request Example

curl -X POST 'https://tetra-history-api.chainconnect.com/v2/transfers/search' \
  -H 'Content-Type: application/json' \
  -d '{
    "userAddresses": ["0:3333...cccc"],
    "transferKinds": ["TvmToTvm"],
    "statuses": ["Pending", "Completed"],
    "fromTvmChainId": -239,
    "toTvmChainId": 2000,
    "ordering": "CreatedAtDescending",
    "limit": 10,
    "offset": 0,
    "isNeedTotalCount": true
  }'

Response Example

{
  "transfers": [
    {
      "tvmTvm": {
        "transferStatus": "Completed",
        "timestampCreatedAt": 1767972717,
        "outgoing": {
          "tokenType": "Native",
          "chainId": -239,
          "userAddress": "0:3333...cccc",
          "tokenAddress": "0:1111...aaaa",
          "proxyAddress": "0:6666...ffff",
          "volumeExec": "1.0000",
          "transactionHash": "abc123..."
        },
        "incoming": {
          "tokenType": "Alien",
          "chainId": 2000,
          "userAddress": "0:2222...bbbb",
          "tokenAddress": "0:4444...dddd",
          "proxyAddress": "0:7777...0000",
          "volumeExec": "0.9990",
          "transactionHash": "def456..."
        }
      }
    }
  ],
  "totalCount": 42
}

Transfer ID for each transfer: transfers[i].tvmTvm.outgoing.transactionHash

Tracking Algorithm

┌─────────────────────────────────────────────────────────────────────────┐
│  1. GET TRANSFER ID                                                     │
│     After sending tokens to the Proxy contract, save the transaction    │
│     hash of that transaction — this is the Transfer ID                  │
└─────────────────────────────────────────────────────────────────────────┘
                                    │
                                    ▼
┌─────────────────────────────────────────────────────────────────────────┐
│  2. REQUEST STATUS                                                      │
│     POST /v2/transfers/status with Transfer ID and Chain ID             │
└─────────────────────────────────────────────────────────────────────────┘
                                    │
                                    ▼
┌─────────────────────────────────────────────────────────────────────────┐
│  3. CHECK transferStatus                                                │
│                                                                         │
│     "Pending"   → Transfer in progress, retry request in 5-10 sec       │
│     "Completed" → Success! Tokens delivered to recipient                │
│     "Failed"    → Error, transfer rejected                              │
└─────────────────────────────────────────────────────────────────────────┘
                                    │
                                    ▼
┌─────────────────────────────────────────────────────────────────────────┐
│  4. FOR COMPLETED TRANSFER                                              │
│     incoming.transactionHash — hash of token delivery transaction       │
│     incoming.volumeExec — received amount (after fees)                  │
└─────────────────────────────────────────────────────────────────────────┘

What to Check in Response

Field	Meaning
transferStatus: "Pending"	Transfer in progress — retry request
transferStatus: "Completed"	Transfer completed — tokens delivered
transferStatus: "Failed"	Transfer rejected — handle error
incoming.transactionHash != null	Delivery transaction executed
proofPayload != null	Merkle proof ready (for non-credit transfers)

Credit vs Non-credit Transfers

Type	Description	User Actions
Credit	Relays automatically deploy event and deliver tokens	Only track status
Non-credit	User deploys event contract themselves	Wait for proofPayload, deploy event

For non-credit transfers:

1. Wait for proofPayload to appear in response
2. Use the ready transaction from proofPayload.abiTx to deploy the Event contract in the destination network (see Sending a Transfer)
3. After deploying Event contract, the transfer will complete automatically

Example: TypeScript polling

async function waitForTransferCompletion(
  transferId: string,
  chainId: number,
  maxAttempts = 60,
  initialDelayMs = 5000
): Promise<TransferStatusResponse> {
  let delay = initialDelayMs;

  for (let attempt = 1; attempt <= maxAttempts; attempt++) {
    const response = await fetch('https://tetra-history-api.chainconnect.com/v2/transfers/status', {
      method: 'POST',
      headers: { 'Content-Type': 'application/json' },
      body: JSON.stringify({
        tvmTvm: {
          outgoingTransactionHash: transferId,
          dappChainId: chainId,
        },
      }),
    });

    const status = await response.json();

    if (status.transfer.tvmTvm?.transferStatus === 'Completed') {
      console.log(`Transfer completed after ${attempt} attempts`);
      return status;
    }

    if (status.transfer.tvmTvm?.transferStatus === 'Failed') {
      throw new Error('Transfer failed');
    }

    console.log(`Attempt ${attempt}: status = ${status.transfer.tvmTvm?.transferStatus}`);
    await new Promise(resolve => setTimeout(resolve, delay));
    delay = Math.min(delay * 1.2, 30000); // Max 30 seconds
  }

  throw new Error('Transfer timeout');
}

// Usage
const transferId = 'abc123def456...';  // Transfer ID from Step 3 of sending a transfer
const result = await waitForTransferCompletion(transferId, -239);
console.log('Transfer completed:', result.transfer.tvmTvm?.incoming);

Getting Status from Contract (on-chain)

In addition to Bridge Aggregator API, transfer status can be obtained directly from the Event contract in the blockchain. This is useful for:

• Verifying API data
• Working without dependency on centralized API
• Getting detailed on-chain status

Event Contract Address

Note

The contractAddress field is not currently available in the TvmTvmTransferMeta API response. Event contract address retrieval via API is planned for future releases.

Reading Status from Contract

import { TonClient, Address } from '@ton/ton';

// ABI for getDetails method of Event contract
const EVENT_CONTRACT_ABI = {
  getDetails: {
    name: 'getDetails',
    inputs: [],
    outputs: [
      { name: 'status', type: 'uint8' },
      { name: 'sender', type: 'address' },
      { name: 'recipient', type: 'address' },
      { name: 'amount', type: 'uint128' },
      // ... other fields
    ],
  },
};

// Mapping numeric statuses to strings
const EVENT_STATUS = {
  0: 'Initializing',
  1: 'Pending',
  2: 'Confirmed',
  3: 'Rejected',
  4: 'Cancelled',
  5: 'LimitReached',
  6: 'LiquidityRequested',
  7: 'LiquidityProvided',
  8: 'Verified',
} as const;

async function getEventContractStatus(
  client: TonClient,
  eventContractAddress: string
): Promise<{ status: string; statusCode: number }> {
  const address = Address.parse(`0:${eventContractAddress}`);

  // Call contract get-method
  const result = await client.runMethod(address, 'getDetails');

  // Parse result
  const statusCode = result.stack.readNumber();
  const status = EVENT_STATUS[statusCode as keyof typeof EVENT_STATUS] || 'Unknown';

  return { status, statusCode };
}

// Usage (once contractAddress becomes available in API)
const client = new TonClient({
  endpoint: 'https://toncenter.com/api/v2/jsonRPC',
});

// Event contract address (will be available in API response in future)
const eventContractAddress = 'aaaa...1111';
const { status, statusCode } = await getEventContractStatus(client, eventContractAddress);

console.log(`Event status: ${status} (code: ${statusCode})`);

Full Event Contract Data

To get all event data, use the getDetails method:

interface EventDetails {
  status: number;
  sender: string;
  recipient: string;
  amount: bigint;
  token: string;
  chainId: number;
  // ... other fields depend on event type
}

async function getFullEventDetails(
  client: TonClient,
  eventContractAddress: string
): Promise<EventDetails> {
  const address = Address.parse(`0:${eventContractAddress}`);
  const result = await client.runMethod(address, 'getDetails');

  return {
    status: result.stack.readNumber(),
    sender: result.stack.readAddress().toString(),
    recipient: result.stack.readAddress().toString(),
    amount: result.stack.readBigNumber(),
    token: result.stack.readAddress().toString(),
    chainId: result.stack.readNumber(),
  };
}

Important

The getDetails response structure may differ for different Event contract versions (Native vs Alien). Check the contract ABI before parsing.
